RB-5

  • Compact , light weight and high quality materials
  • Rain and dust proof
  • Made and assembled in Japan with Test card

Working diagram

Product detail

รายละเอียดสินค้า

Item no. Rated
load (t)
Standard
lift (m)
Test
load (t)
Load chain Min. headroom
G (mm)
Pulling effort
P (N)
Net weight
(kg)
Diameter No. of falls
RB50050(F) 0.5 1.0 0.75 4 1 280 416 3.5
RB50080(F) 0.8 1.5 1.2 5.6 1 290 260 5.5
RB50160(F) 1.6 2.4 7.1 1 330 305 9.6
RB50320(F) 3.2 4.8 9 1 430 385 16.3
RB50630(F) 6.3 7.9 9 2 580 390 30.5

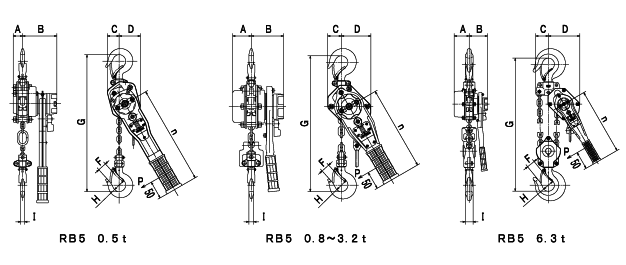

Item no. Rated
load (t)
External dimensions (mm)
A B C D F H I n
RB50050(F) 0.5 27 95 33 59 24 36 11 275
RB50080(F) 0.8 52 90 38 82 24 36 13.5 235
RB50160(F) 1.6 65 98 41 97 31 45 20 370
RB50320(F) 3.2 83 102 53 124 35 52 24 370
RB50630(F) 6.3 83 102 70 174 46 67 43 370
