HE-50A

  • Compact , light weight and high quality materials
  • Rain and dust proof
  • Pinion shaft is supported with carbon bushing
  • Triple spur geared
  • Double independent pawl
  • Made and assembled in Japan with Test card

Working diagram

Product detail

รายละเอียดสินค้า

Item no. Rated load
(t)
Standard
lift (m)
Pulling
effort (N)
Min. headroom
G (mm)
Net weight (kg) Test
load (t)
HE5005A 0.5 2.5 245 260 8 0.75
HE5010A 1 265 300 10.5 1.5
HE5015A 1.6 324 345 15 2.4
HE5020A 2 3.0 392 380 21 3.0
HE5030A 3.2 353 530 24.5 4.8

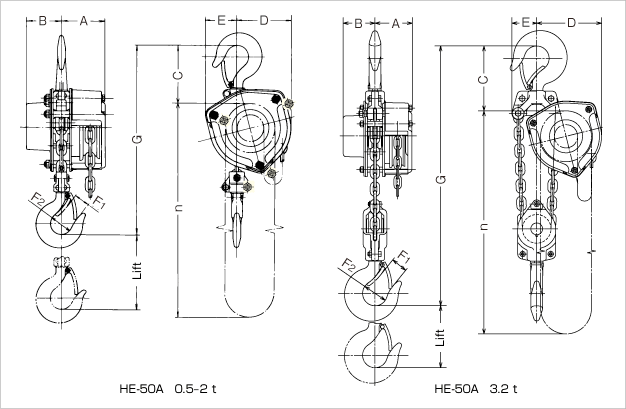

Item no. External dimensions (mm)
A B C D E F1 F2 n
HE5005A 82 56 100 90 48 24 36 2500
HE5010A 84 66 110 100 59 29 43 2500
HE5015A 91 77 120 115 69 33 48 2500
HE5020A 99 88 125 132 82 35 52 3000
HE5030A 91 77 160 160 60 40 60 3000
